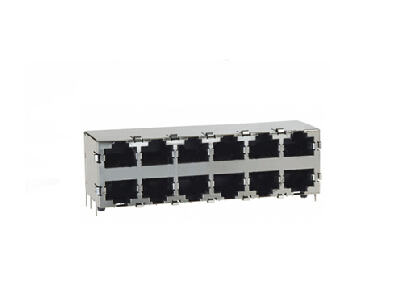

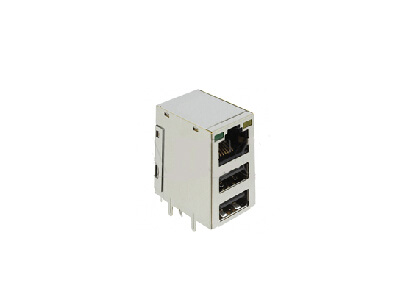

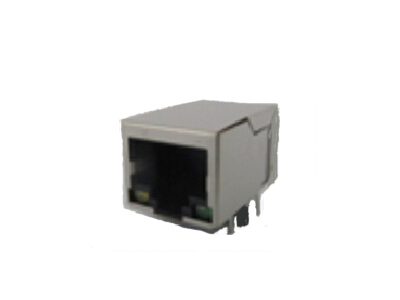

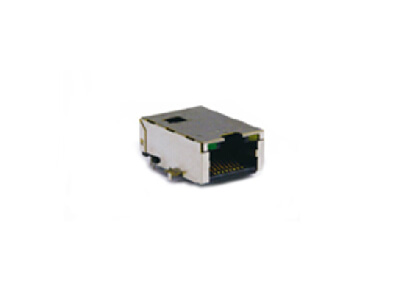

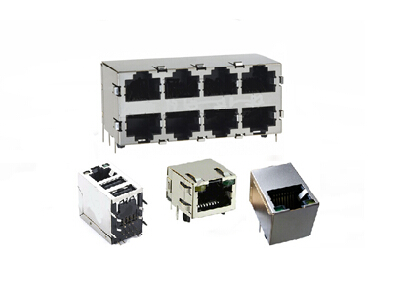

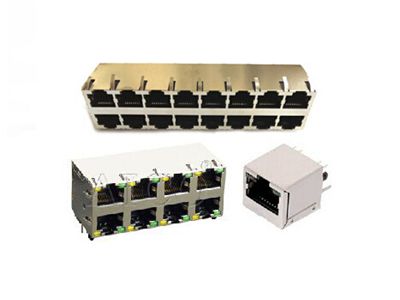

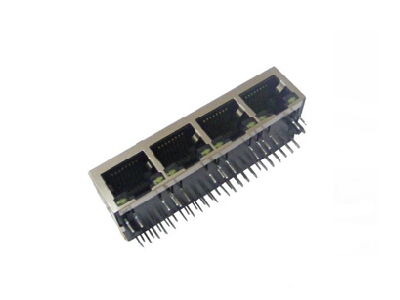

RJ45 Magnetic Modular Jack Connector

AICO RJ45 magnetic modular jack connectors with transformer are designed and manufactured to comply with IEEE802.3 and EIA364 standard, also comply RoHS requirement. They are used in computing, networking, high-speed data transmission, power supply, EMI suppression, ESD/lightning protection and consumer electronics.  Free Samples

CONTACT US TODAY

Applications

  • Networking: servers, Hubs, Routers/Switch, Ethernet switches, Surge protectors
  • Consumer: Fitness equipment, Security systems, Set top boxes,  Home security, Computers and peripherals, ATM machines,  Point of sales terminals, LCD and TV panel, Lap tops, Printers, Televisions, Copiers
  • Industrial: Industrial computers, Industrial networks, Industrial smoke and smog detectors, Vending machines
  • Medical: Bed monitors, Breathing devices, Home analysis monitors, PC monitors
  • Telecom: PBX system, Fax machines, Phone line security systems, Telephone, Telecom box, Broadband Switches

Technical Parameters

  • Features and benefits
    High performance on EMI suppression
    POE function
    ESD/Lightning protection
  • Physical
    Material
    Contact: Copper alloy
    Housing: Thermoplastic UL94 V_0
    Color: Black
    Shield: Metal alloy
    Finish
    Contact: Gold plating on contact area with 50u, 30u, 15u, 6u … etc option.
    Shield: Nickel Plating.
  • Electrical specification
    Meets IEEE802.3 specification
    350µH minimum OCL with 8mA DC base current
    Voltage rating: 150 V  AC
    Current rating: 100 mA for magnetic; 350 – 600 mA for POE, 1.5 A for USB
    Dielectric strength: 1500 VRMS for 1 minute Min
    Insulation resistance: 1000 MEG OHM Min
    Contact resistance: 30 MILL OHM Max
    Speed: 10M/100M/1000M/10000M
  • Mechanical
    Insertion force: 51bs Max
    Extraction force: 51bs Max
    Durability: 750 times
    Dimension comply with FCC requirement
    Suitable for CAT5 & 6 Fast Ethernet Cable or better UTP
  • Environment
    Operating temperature: -40℃~+85℃
    Storage temperature: -40℃~+85℃
    RoHS compliant
    Wave soldering:  260℃/10S
  • Reference information
    Designed ln: millimeters
    Packaging: tray packing and tape & reel
    Dimension tolerance: +/-0.254mm (if no specified)
  • The circuits are only for reference, we could design different circuit for different mechanical structure according to customer requirement.
