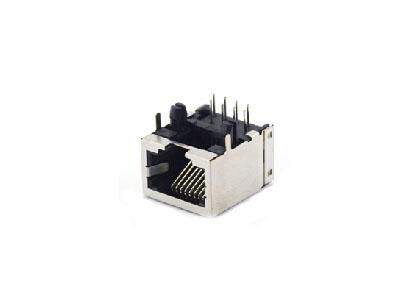

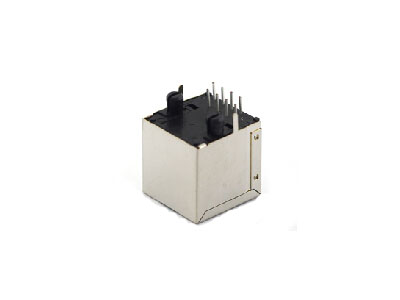

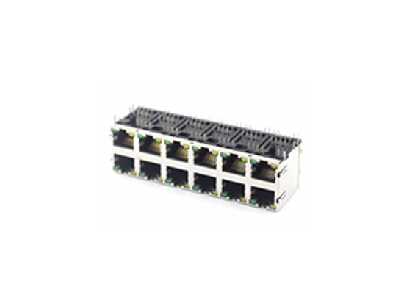

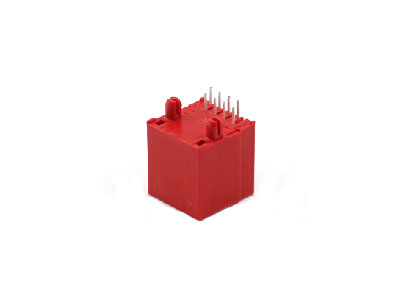

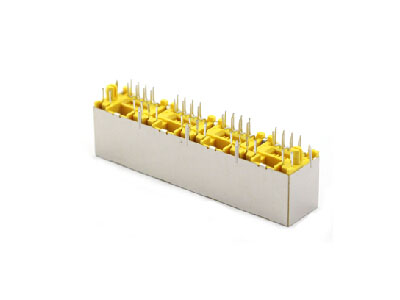

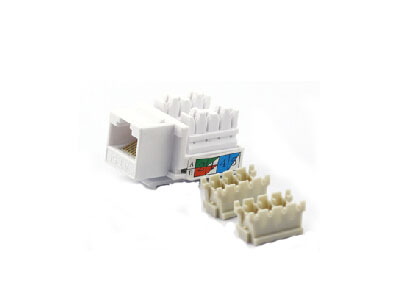

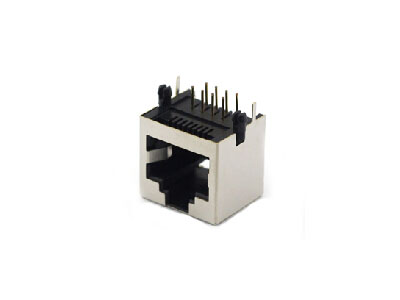

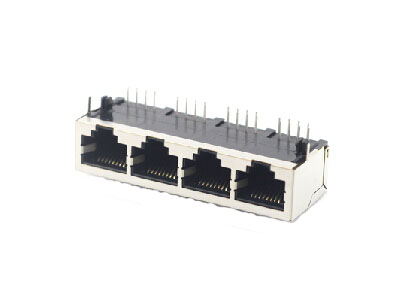

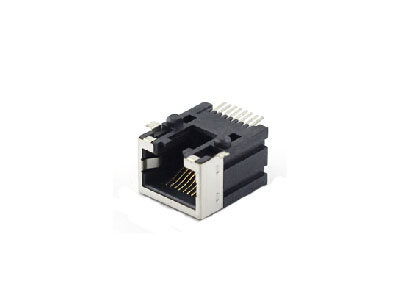

Standard RJ45 network socket modular jack

Offering one of the largest product breadths of right angle side entry modular jacks, vertical top and bottom entry modular jacks in ethernet speeds, AICO has solutions to your design requirements.  Free Samples

Applications

  • Networking: Network servers, Hubs, Routers/Switch, Ethernet switches, Surge protectors
  • Consumer: Security systems, Set-top box, Copiers, Home security, Computers and peripherals, ATM machines,  Point of sales terminals, RJ45 network socket
  • Industrial: Industrial computers, Vision systems, Industrial smoke and smog detectors
  • Medical: Bed monitors, Breathing devices, Home analysis monitors
  • Telecom: PBX system, Fax machines, Phone line security systems, Telephone



Technical Parameters

  • Electrical
    Current Rating: 1.5 AMPS@25℃
    Voltage Rating: 125VAC
    Insulation Resistance: 1000MΩ Min. @500V DC
    Withstand Voltage: 1000VAC RMS or 1500VDC @ 0.5mA 50Hz / 60Hz 1 Minute
    Contact Resistance: 35~50 mΩ Max
  • Mechanical
    Mating/Unmating Force: 22N/2.27kg Max
    Retention Strength: 57.83N or 30N Min
    Durability: 750 Mating Cycles Min
  • Material
    Housing: (1) ABS Resin (UL 94V-0); (2) Glass Filled PBT (UL 94V-0); (3) PA + GF (UL 94V-0)
    Spring Wire: (1) 0.45mm DIA Phosphor Bronze Gold Plating over Nickel; (2) 0.35mm Thickness Phosphor Bronze Alloy Selective Gold Plating over Nickel.
    Shielding: 0.20mm Thickness Copper Alloy with Nickel Plated or SUS
    Gold Plating: Gold Flash 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
  • Working temperature
    -40℃~+85℃ / -20℃~+70℃ (PC, ABS)
