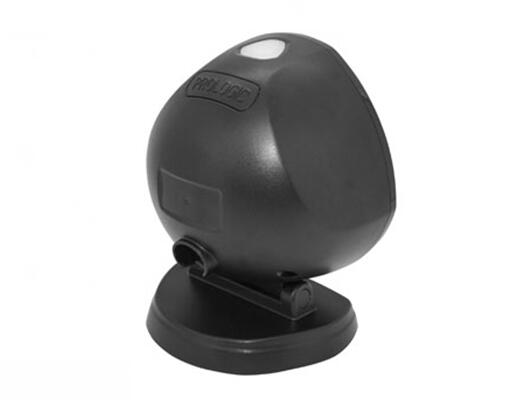

Megapixel 2D 1D barcode PDF417 QR Bar code reader desktop scanner – ACPS60H2D

Product Feature

Switch to read only 1D code, to prevent misreading adjacent 2D code
Read the coated bar code and mobile phone payment code smoothly
Quick and accurate reading of universal 1D & 2D code
Ultra wide scan wide angle and ultra far reading distance
Soft color fills the light, does not hurt the eye

Specification

Performance Parameters
Image Sensor(Pixels):	1280pixels (H) x 800 pixels (V)
Supported Symbologies:	1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5, Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, ISBT 128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, ISBN, MSI, GS1 DataBar-Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded. 2D: PDF417, QR code, DataMatrix, Aztec Code, China Post, HongKong 2 of 5, Korea Post, Han Xin Code, Maxi code, Micro PDF417, GS1 Composte coders, Codablock A, Codablock F, etc.
Scan Range:	10-170mm (EAN13 13mil, PCS=90%)
System compatibility:	Linux、Android、 WindowsXP、 7、8、10
Minimum recognition accuracy:	Code 39 4mil
Motion tolerance:	4meters/second
Scan Mode:	Automatic Induction Scanning
Field Angle:	44°(H), 34°(V)
Print contrast:	20%
Scan Angle:	Turn ±360°, Elevation ±65°, Declination ±65°
Man-machine Interaction:	Indicator light: Blue light power indicator; Blue light flashing code reading prompt, Buzzer: start prompt, read code prompt.
Interface:	USB(Drive-Free), RS232, USB-COM
Electrical Parameters
Voltage:	DC5V±5%
Operating Current:	Standby current 190mA; Working current 240mA.
Physical Parameters
Dimensions:	146.4mm124.8mm 95mm
Material:	ABS+PC
Cable:	1.8M
Weight:	390g
Environmental Parameters
Operating Temperature:	-20℃~60℃
Storage Temperature:	-30℃~70℃
Relative Humidity:	5%~95% RH（Non-condensing）
Ambient lighting:	0~700000LUX
Drop/Shock Resistance:	Withstands multiple times 1.5 meters drops to concrete
