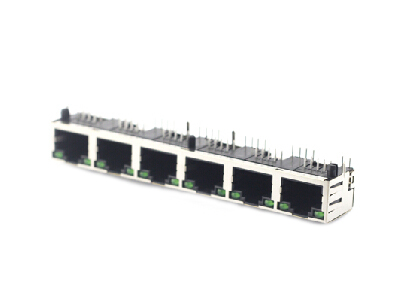

8P8C pcb mount right angle shielded 1×6 rj45 female connector with led tab up, E56140800 (Free Sample)

Technical Parameters:

Electrical
Current Rating: 1.5  AMPS@25℃
Voltage Rating: 125VAC
Insulation Resistance: 1000MΩ Min. @500V DC
Withstand Voltage: 1000 V AC RMS or 1500 V DC @ 0.5mA 50Hz/60Hz 1 Minute
Contact Resistance: 35~50 mΩ Max

Mechanical
Mating/Unmating Force: 22N/2.27kg Max
Retention Strength: 57.83N or 30N Min
Durability: 750 Mating Cycles Min

Material
Housing: (1) ABS Resin (UL 94V-0); (2) Glass Filled PBT (UL 94V-0); (3) PA + GF (UL 94V-0)
Spring Wire: (1) 0.45mm DIA Phosphor Bronze Gold Plating over Nickel; (2) 0.35mm Thickness Phosphor Bronze Alloy Selective Gold Plating over Nickel.
Shielding: 0.20mm Thickness Copper Alloy with Nickel Plated or SUS
Gold Plating: Gold Flash 3u inch, 6u inch, 15u inch, 30u inch, 50u inch

Working temperature
-40℃~+85℃/-20℃~+70℃ (PC, ABS)



Product Drawing (PDF Download Available):

8P8C pcb mount right angle shielded 1×6 rj45 female connector with led tab up rj45 lan port, E56140800
