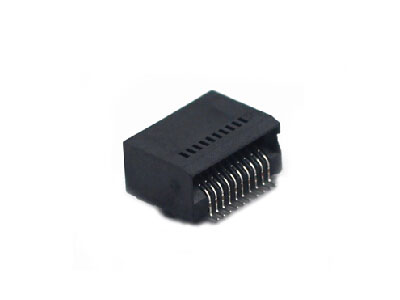

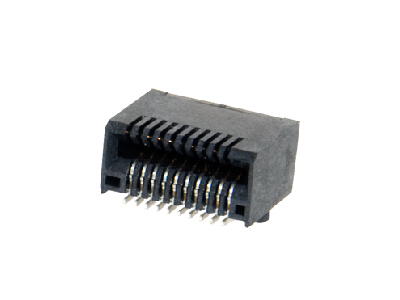

ZSFP+ SMT Connector, ZSFP Plus Receptacle, ESF150609C (Free Sample)

Technical Parameters:

  • General Characteristics
    ROHS compliant
    Industry standard footprint
    Industry standard EIA-364
  • Mechanical Characteristics
    Durability: 250 mating cycles min
  • Electrical Characteristics
    Hot swappable
    Operating voltage: 30V
    Operating current: 0.5A
    Differential impedance: 100Ω±10Ω
    DWV: 300V AC
    Insulation resistance: 1000MΩ min
    EMI spring fingers for superior EMI performance
  • Packaging
    Tape and reel packaging: connector
    Tray packing: cage
    Outer packing: dust cover
  • Temperature rating
    Operating temperature: -55℃~+85℃
    Storage temperature: -55℃~+85℃



  • Materials
    Cage
    Base Material: Copper Alloy
    Plating: Nickel
    Heat sink: Aluminum Alloy
    Heat sink clip: Stainless Steel
    EMI spring finger: Copper alloy with Nickel plating
    Dust cover: Thermoplastic
    Connector
    Contact base material: Copper Alloy
    Contact plating: Gold on mating area, matte tin on termination and grounding tabs
    Housings: Glass reinforced, Lead-free solder reflow process compatible thermoplastic, UL94V-0 Rated
  • Configurations 1xN (rows x ports per row)
    1×1  1×2  1×4  1×6
  • Options

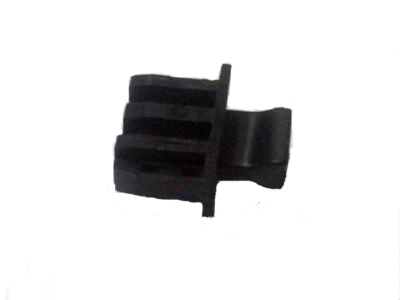

    Dust cover

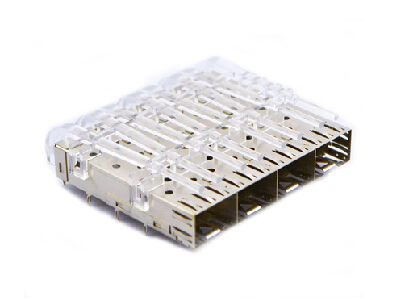

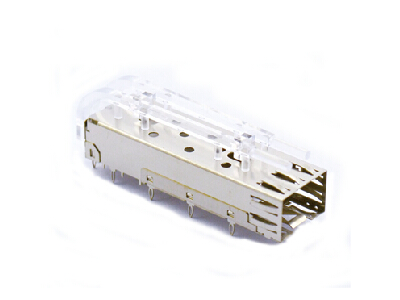

    Round light pipe

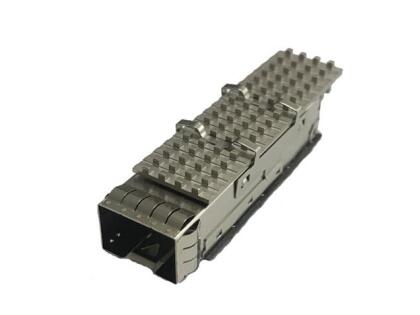

    Heat sink

Product Drawing (PDF Download Available):

ZSFP+ SMT Connector, ZSFP Plus Receptacle, ESF150609C
